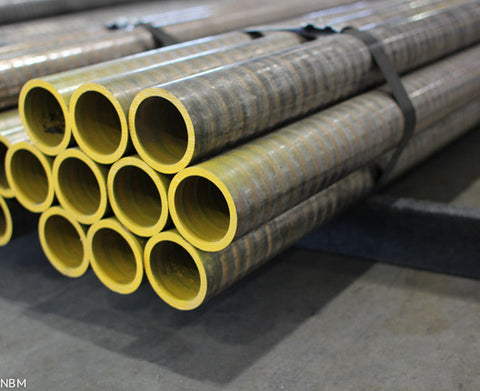

C92500 Leaded Tin Bronze

Shapes Available

C92500 Leaded Tin Bronze

Utilisations types du bronze à l'étain au plomb C92500 :

AUTOMOBILE: anneaux de synchroniseur automobile

INDUSTRIEL : engrenages

Request a Quote

Al Sb Cu Fe Pb Ni P Si S Sn Zn
Min/Max 0.005 0.25 85.0 - 88.0 0.3 1.0 - 1.5 0.80 - 1.5 0.3 0.005 0.05 10.0 - 12.0 0.5
Nominals - - 86.5000 - 1.3000 1.2000 - - - 11.0000 -
Product Type Temper Type
Continuous ASTM B505, SAE J461, J462
Ingot ASTM B30
Sand SAE J462, J461
Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL
YS
0.02% Offset
YS
0.005% Offset
Elong. RH
B
RH
C
RH
F
RH
30T
VH
500
BH
500
BH
3000
Shear
Strgth
Fatigue
Strgth
Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
As Continous Cast
M07 68 40 24 - - - - - - - - - - - -
M07 0 SMIN 20 276 165 - - 10 - - - - - - - - - 0
As Sand Cast
M01 68 44 20 - - - - - - - - - - - -
M01 0 TYP 20 303 138 - - 20 - - - - - 80 - - - 0
Product Property US Customary Metric
Density 0.317 lb/in3 at 68 F 8.7 gm/cm3 @ 20 C
Incipient Melting 600 oF 316 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Specific Gravity 8.7 8.7
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg . oK at 293 K
Joining Technique Suitability
Brazing Good
Coated Metal Arc Welding Not Recommended
Gas Shielded Arc Welding Not Recommended
Machinability Rating 30
Oxyacetylene Welding Not Recommended
Soldering Excellent
End Product Specification
Continuous ASTM B505, SAE J461, J462
Ingot ASTM B30
Sand SAE J462, J461
