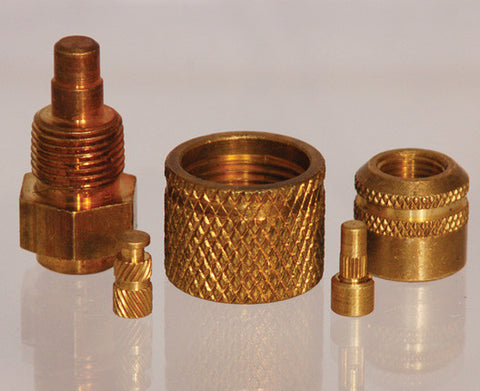

C35300 Threaded Rolling Brass

Shapes Available

C35300 Threaded Rolling Brass

Typical Uses

Builders Hardware: Drawer Pulls, Hinges, Drawer Handles

Consumer: Bicycle Spoke Nipples, Clock and Watch Parts, Clock Plates and Nuts, Key Blanks

Fasteners: Nuts, Rivets, Screws

Industrial: Ratchets, Instrument Backs, Automatic Screw Machine Parts, Valve Stems, Pinions, Flare Fittings, Couplings, Bearing Cages, Channel Plate, Wheels, Gears, Adapters

Other: Engravers Plate

Plumbing: Faucet Seats, Faucet Stems, Pipe Fittings, Plumbers Fittings, Plumbers' Brass Goods

Request a Quote

Cu Fe Pb Zn
Min/Max 59.0 - 63.0 0.07 0.3 Rem
Nominals 60.0000 - - 40.0000
Product Type Temper Type
Bar ASTM B36
Plate ASTM B36
Sheet ASTM B36
Strip ASTM B36
Tube, Condenser ASME SB111, ASTM B111
Tube, Seamless ASTM B135, FEDERAL WW-T-791
Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL
YS
0.02% Offset
YS
0.005% Offset
Elong. RH
B
RH
C
RH
F
RH
30T
VH
500
BH
500
BH
3000
Shear
Strgth
Fatigue
Strgth
Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
FLAT PRODUCTS
H02 0.04 68 70 50 - - - - - - - - - - 44 -
H02 1 0 TYP 20 483 345 - - 10 75 - - 67 - - - 303 - 0
O60 0.04 68 54 21 - - - - - - - - - - 40 -
O60 1 0 TYP 20 372 145 - - 45 - - 80 46 - - - 276 - 0
M20 0.04 68 54 21 - - - - - - - - - - 40 -
M20 1 0 TYP 20 372 145 - - 45 - - 85 49 - - - 276 - 0
H00 0.04 68 60 35 - - - - - - - - - - 42 -
H00 1 0 TYP 20 414 241 - - 30 55 - - 54 - - - 290 - 0
ROD
H01 1 68 72 50 - - - - - - - - - - 45 -
H01 25.4 0 TYP 20 496 345 - - 25 78 - - - - - - 310 - 0
M30 1 68 52 20 - - - - - - - - - - 39 -
M30 25.4 0 TYP 20 359 138 - - 52 - - 78 - - - - 269 - 0
O60 1 68 54 21 - - - - - - - - - - 40 -
O60 25.4 0 TYP 20 372 145 - - 50 - - 80 - - - - 276 - 0
TUBE
H04 0 68 74 55 - - - - - - - - - - - -
H04 0 30 TYP 20 510 379 - - 10 80 - - - - - - - - 0
O50 0 68 56 23 - - - - - - - - - - - -
O50 0 0 TYP 20 386 159 - - 50 - - 82 47 - - - - - 0
Product Property US Customary Metric
Coefficient of Thermal Expansion 11.6 ÌÎ?̴ÌÁ10-6 per oF (68-572 F) 20.9 ÌÎ?̴ÌÁ 10 6? per ÌÎ?̴åÁC (20-300 C)
Density 0.303 lb/in3 @ 68 F 8.39 gm/cm3 @ 20 C
Electrical Conductivity 28 %IACS @ 68 F 0.164 MegaSiemens/cm @ 20 C
Electrical Resistivity 37.0 ohms-cmil/ft @ 68 F 6.15 microhm-cm @ 20 C
Melting Point Liquid US 1660 F 904 C
Melting Point Solid US 1650 F 899 C
Modulas of Elasticity in Tension 15000 ksi 103400 MPa
Modulas of Rigidity 5600 ksi 38610 MPa
Specific Gravity 8.39 8.39
Specific Heat Capacity 0.09 Btu/lb/ÌÎ?̴åÁF @ 68 F 377.1 J/kg ÌÎ?̴ÌÁ ÌÎ?̴åÁK at 293 K
Thermal Conductivity 71.0 Btu ÌÎ?̴ÌÁ ft/(hr ÌÎ?̴ÌÁ ft2 ÌÎ?̴ÌÁÌÎ?̴åÁF) @ 68 F 1229.9 W/m ÌÎ?̴ÌÁ ÌÎ?̴åÁK at 20 C
Joining Technique Suitability
Brazing Excellent
Butt Weld Good
Capacity for Being Cold Worked Fair
Capacity for Being Hot Formed Excellent
Coated Metal Arc Welding Not Recommended
Forgeability Rating 90
Gas Sheilded Arc Welding Fair
Machinability rating 40
Oxyacetylene Welding Good
Seam Weld Not Recommended
Soldering Excellent
Spot Weld Good
End Product Specification
Bar ASTM B36
Plate ASTM B36
Sheet ASTM B36
Strip ASTM B36
Tube, Condenser ASME SB111, ASTM B111
Tube, Seamless ASTM B135, FEDERAL WW-T-791
